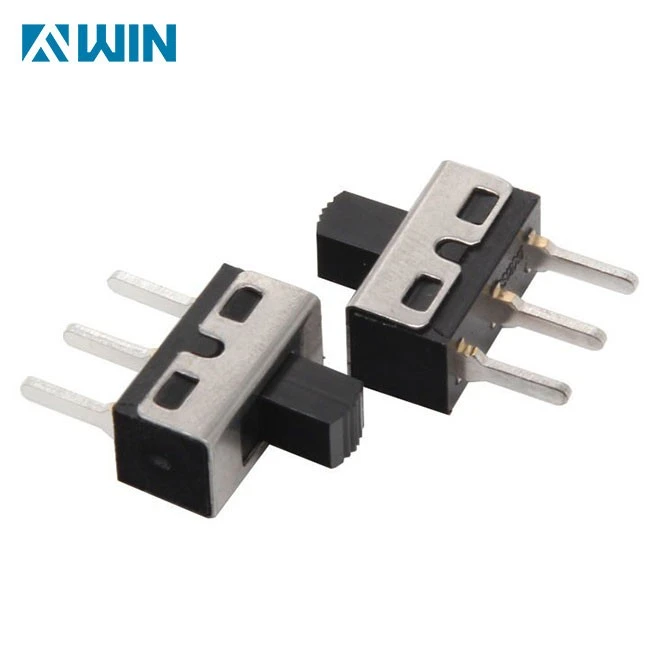

Saklar Geser SPDT

A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control of a circuit's current flow without having to manually connect or cut circuit.A variety of slide switch accommodate a multitude applications,it provides the top and side actuator switches are available supplying maximum flexibility.

Sakelar geser diklasifikasikan sebagai sakelar geser arus kecil dan sakelar geser arus besar, sakelar geser mikro digunakan untuk mainan elektronik dan produk digital, dan sakelar geser besar diterapkan untuk peralatan listrik dan mesin berat.

Slide switch controls the circuit by sliding the handle to connect or break,then switch the circuit.slide switch was divided into single pole and double position,single pole three position,double pole double position and double pole three position;it's widely used to low voltage circuit,and features with flexible slide action and stable performance as well as high reliability;it's applied to various instrument and apparatus.electronics toys,audio equipment,medical equipment and beauty equipment as well as other electronics products filed.

Spesifikasi

Peringkat: AC 125V 1.5A

Resistensi Kontak: 100mohm MAX (AWAL)

Resistansi Isolasi: 100Moh mAT 500VDC

Menahan Tegangan: AC 500V SELAMA 1 MENIT

Rentang Hidup:10,000 siklus (15-18 C/M bongkar)

Data dan Dimensi

Produk-produk lain

Detail Kemasan:

Stand Exported Packing for computer power switch:
inner bubble box--- inner box---carton (or by your request.)

FAQ

Q: Apakah Anda memproduksi/pabrik? Lokasi?

 A: Yes, office is located in Shenzhen , Dongguan province.

Q: What about terms of payment ?

A: T/T, L/C, Paypal, Uang Tunai dll.

Q: Do you test all your goods before delivery?

A: Ya, kami memiliki tes 100 persen sebelum pengiriman.

T: Apakah Anda menyediakan layanan yang disesuaikan?
A: Yes,we support OEM/ODM service.

Tag populer: saklar geser spdt, Cina, pemasok, produsen, pabrik, disesuaikan, grosir, untuk dijual, dibuat di Cina
